| ब्रांड नाम: | LIKEE |
| मॉडल संख्या: | लालकृष्ण-T63 |
| एमओक्यू: | 1 सेट |
| कीमत: | $45000-75000/set |
| प्रसव का समय: | मानक मशीन 30 दिन है। अनुकूलित मशीन अनुबंध के अनुसार है |
| भुगतान की शर्तें: | टी/टी, एलसी |

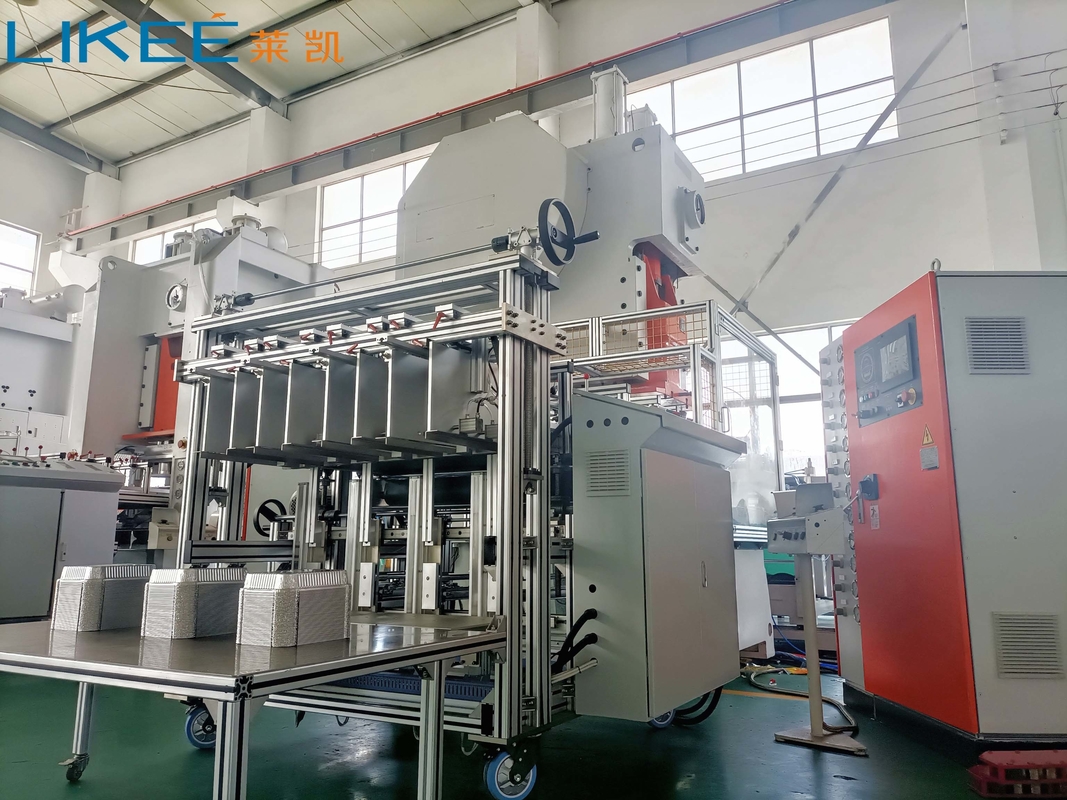

LK-T63 Food Container Punching Machine 3003H24 8011H22 3004H24 Raw Material Cutting Edge
Product Description:
Technical Parameters:
| Applicable Material Model | 3003H24, 8011H22, 3004H24 |
| Processing Function | Punching Forming Cutting |
| Stroke | 240mm Fix |
| Maximum Foil Passage Width | 950mm |
| Warranty | 1 Year |
| Production Speed | 9000pcs/hour |
| Workplace Dimension | 1250*1000mm |
| Total Weight | 12300KG |
| Low Voltage Electrical | Schneider |
| Main Motor | Siemens |
| Capacity | 3 Cavities |
| Installed Power | 19.8KW |
Functions:
FAQ:
Q: Which raw materials are applicable?
A: 3003H24, 8011H22, 3004H24;
Q: What is the applicable thickness of the raw materials?
A: 0.025-0.2mm.
Q: Can one product accommodate different material thickness tolerances?
A:Yes. For small and medium-sized container, the tolerance is 10 microns; for large ones, is 15-30 microns.
Q: When should raw materials be purchased?
A: One month after the mold is completed, we will notify the customer of the final material parameters and they can then purchase the materials.
Q: Should we buy oil-coated foil or non-oil-coated foil as raw materials?
A: Both are fine. Non-oiled foil saves costs. Oiled foil is recommended for the first purchase.
